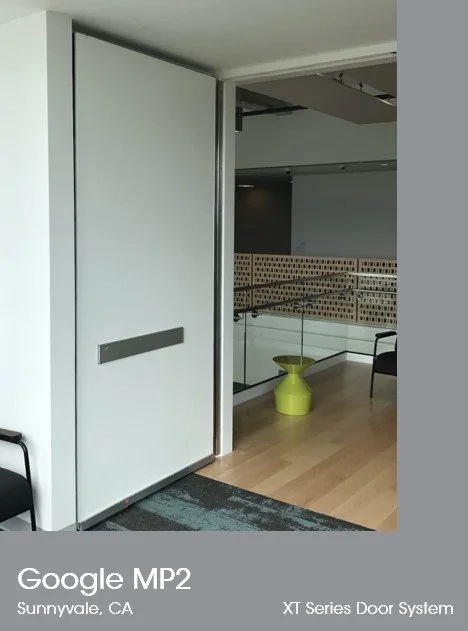

XT Series – Flush Exit Device Openings

🡬 INTEGRATED DOOR ASSEMBLIES

The flagship of Syntégra’s integrated door systems is the XT Series, which combines the functionality of a mortise lockset with the free-egress safety features of an exit device.

---

Building owners no longer have to sacrifice aesthetics for strength and durability because Syntégra engineers their door systems to be configurable and adaptable to meet the needs of the each opening. Finally, a ‘no compromise’ solution that looks as great as it performs.

The sleek yet balanced near-flush exit device recesses into the door face to maximize the clear opening width for a safe and accessible path of egress while complying with the strictest fire and life safety codes. Plus, the robust mechanisms and electrical functions are engineered to meet the most demanding and punishing commercial, educational, institutional, and industrial environments.

• Typical Applications

  Single doors, pairs and double egress pairs found in the following applications:

  • Areas of assembly – arenas, ballrooms, houses of worship, performing arts, recreation facilities and restaurants

  • Areas of refuge – elevator lobbies and stairwells

  • Areas of separation – cross corridor

  • Paths of egress – building exits and ground floor stairwells

• Enhanced Security

  • Patented friction-limiting latch bolt with 7/8″ throw

  • Available in top latching or top and bottom latching

  • Exterior lever with anti-abuse clutching

  • Protected latches and operating mechanisms are concealed within the steel door and sheltered from attack, abuse, or tampering

• Tested Durability

  • Heavy-wall aluminum construction

  • Pushbar holds retracted when the door is in the open position, maximizing the clear opening width and limiting damage

• Versatility

  • Extensive list of ANSI functions to suit most openings and applications

  • Access control ready with latch retraction, electrified lever and RX options

  • Electrical options available in kit-form allowing for future upgrades

• Uncompromised Safety

  • Listed for flush Panic Hardware (UL305) and for fire tests (UL10C) with single-point top latching or top and bottom latching

  • Pushbar holds retracted when the door is in the open position maximizing the clear opening

  • Top latching instead of side edge latchbolt and strike for singles and pairs prevents catching on clothing or equipment

  • Optional antimicrobial coatings available for healthcare, education and other germ-sensitive environments

  • CleanVue – Simple hygienic release feature allows for full access to the pushbar for sanitizing without disassembly

• Unequaled Aesthetics

  • Minimized pushbar end caps with hidden fasteners provides clean, uninterrupted lines

  • Pushbar available in architectural and décor-matching finishes

  • Escutcheon-free levers available in the most popular styles and finishes

  • Décor Series levers used to make a unique design statement, or to match other locksets used on a project

  • Optional integrated top strike prep eliminates the need for a surface mounted auxiliary plate

  • Projection type latchbolt minimizes the top strike view and minimizes the top door “notch” required by others

  • No floor strikes required means fire ratings without the need for bottom latchbolts
